90deg Fiber Bending Fiber Array

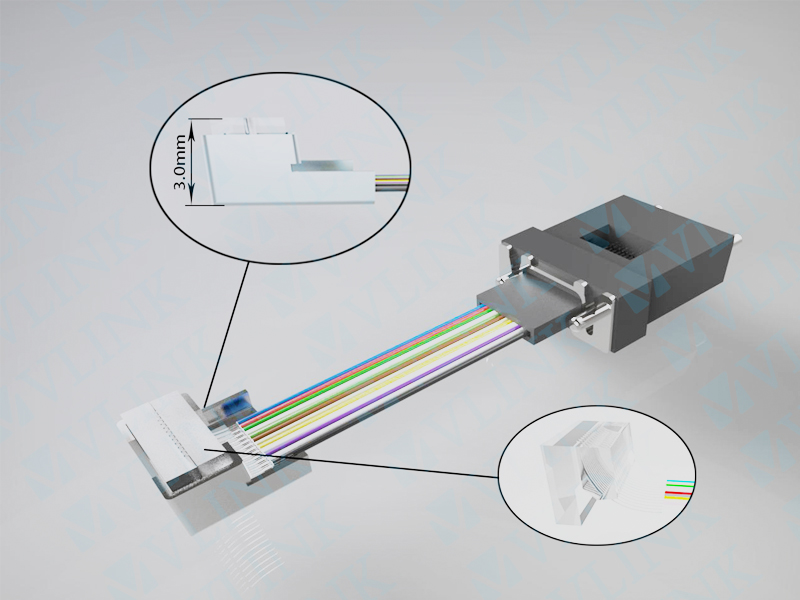

VLINK 90degree Bending Fiber Arrays are fabricated with high precision V-Groove substrate via VLINK special bend, assembly and polish process to get low insertion loss, high accuracy of fiber core pitch and excellent quality of polished surface. The compact dimensions with height less than 3.8mm is ideal for connection on high speed silicon photonics transceiver modules.
  • 功能描述
  • 产品参数
  • 产品应用

Features

  • Fiber bending with minimized stress.

  • High precision of Core pitch of Fiber Array

  • High coupling efficiency

  • Comply with GR-1435 requirements


Parameter

Unit

Value

Height of FA

mm

<4.0

Core pitch

um

250±0.5

FA Polish Angel

degree

8±0.5

Insertion Loss

dB

≤0.35

Return Loss

dB

≥55

Operating WL

nm

1310


Applications

  • 100G high speed transceiver by silicon photonics

  • COBO
