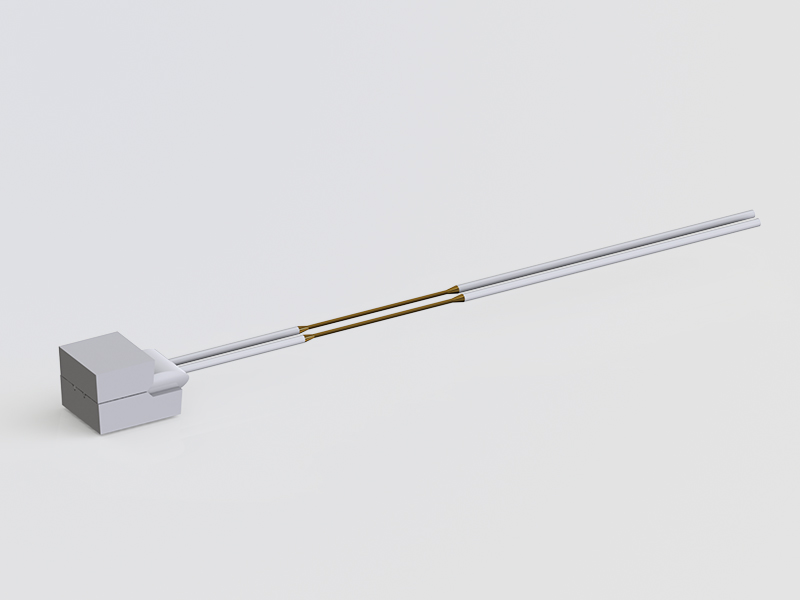

PM Fiber Pigtail
Vlink’s PM Fiber Pigtail is ideally suited for PM devices, PM collimators, Fiber Sensor systems. With our professional design and manufacturing capability, Vlink can off customer various types of PM pigtails. Our products are high quality, cost effective, GR-1221 and Rohs compliance. 1·
  • 功能描述
  • 产品参数
  • 产品应用

Features

  • High Extinction Ratio

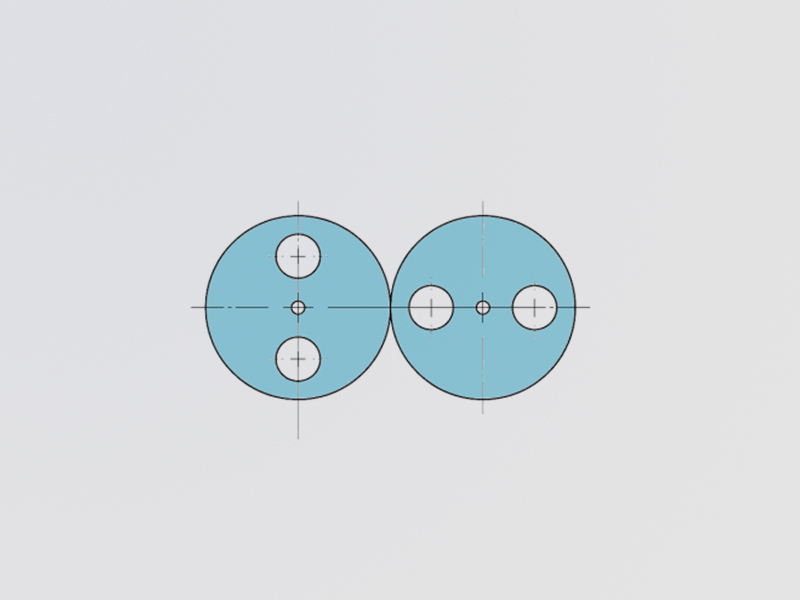

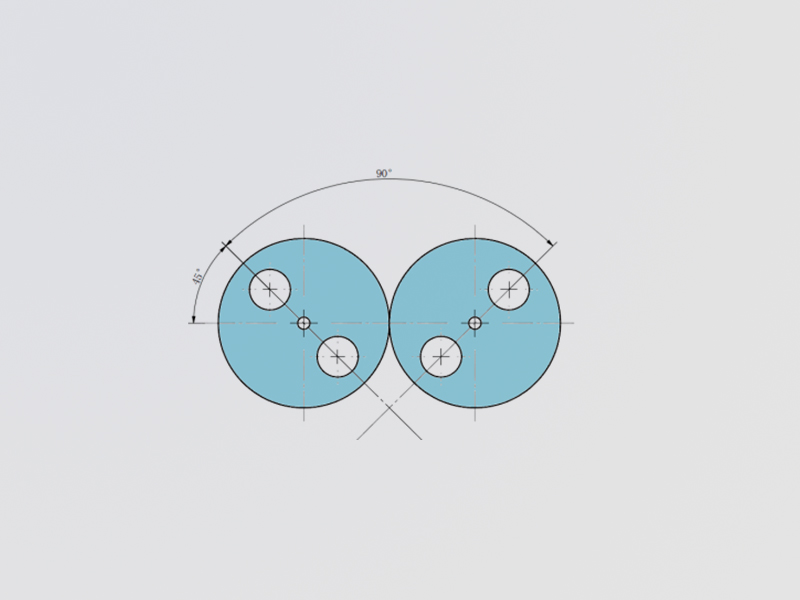

  • Alignment with Different Angle

  • High Precise Polished Angle

  • High Reliability and Stability

  • GR-1221 Compliance

Parameters

Unit

Single Fiber

Dual Fiber

Operation Wavelength

nm

1310+30, 1550+30, 1525~1625 or customer specified

AR Coating Reflection Rate

-

≤0.25%

Polishing angle

-

6°, 8°, 9°, 11° or customer specified

Fiber Type

-

PM Panda Fiber or Customer Specified

Polarization Extinction Ratio

dB

≥25

Return Loss

dB

≥55

Dimensions (Diameter)x(Length)

mm

Ø1.8 x 7, Ø1.0 x 7 or Customer Specified

Operating Temperature

(℃)

-5~75

Storage Temperature

(℃)

-40~85


Applications

  • PM Components

  • Fiber Sensor System

  • Coherent module and system

  • Laser Source
