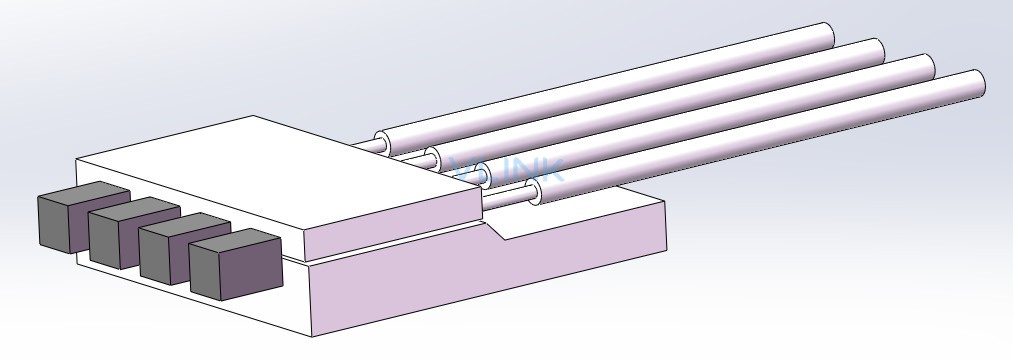

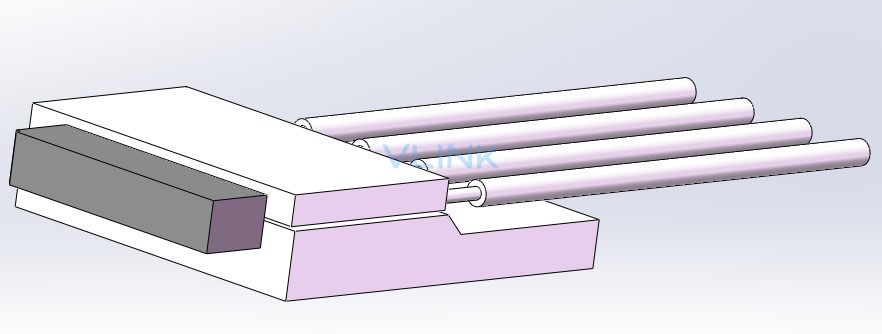

Vlink可以根据客户的需求定制Isolator，目前已经成熟量产的有高隔离度的FAU-Isolator，高PER的FAU-Isolator等
Parameters | Unit | Specification | |
Operating Wavelength | nm | 1270~1610 | |
Single/Dual Stage | - | Single Stage | Dual Stage |
Insertion Loss(Max) | dB | 0.3(Typical 0.2) | 0.5(Typical 0.3) |
Isolation(Min) | dB | 35(Typical 40) | 55(Typical 60) |
Clear Aperture(Min) | mm | CA0.3 | |
Power Handing(Max) | mw | 500 | |
应用于400G/800G的高速光模块
精准的机械安装精度
12/16CH MT可选
阵列耦合透镜高精度出光角度
